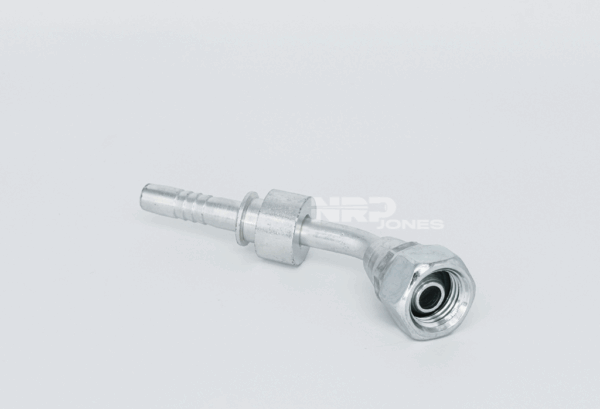

BSPP Swivel Female Stem 30° Cone 45° Bent Tube

Name: BSPP Swivel Female Stem 30° Cone 45° Bent Tube
SKU: d55c5eae836e

$2.00

Part Number

Clear

SKU: d55c5eae836e Categories: British Standard and Metric Stems, Hydraulic Fittings, Two-Piece Fittings

Additional information

Additional information

Part Number

204-1JBPX-4-45, 204-1JBPX-6-45, 204-1PBPX-4-45, 204-1PBPX-6-45, 204-BPX-4-45, 204-BPX-6-45, 206-1JBPX-6-45, 206-1JBPX-8-45, 206-1PBPX-6-45, 206-1PBPX-8-45, 206-BPX-6-45, 206-BPX-8-45, 208-1JBPX-10-45, 208-1JBPX-8-45, 208-1PBPX-10-45, 208-1PBPX-8-45, 208-BPX-10-45, 208-BPX-8-45, 210-1JBPX-10-45, 210-1JBPX-12-45, 210-BPX-10-45, 210-BPX-12-45, 212-1JBPX-12-45, 212-1JBPX-16-45, 212-BPX-12-45, 212-BPX-16-45, 216-1JBPX-16-45, 216-1JBPX-20-45, 216-BPX-16-45, 216-BPX-20-45, 220-1JBPX-20-45, 220-BPX-20-45, 412-1PBPX-12-45, 412-1PBPX-16-45, 412-BPX-12-45, 412-BPX-16-45, 416-1PBPX-16-45, 416-1PBPX-20-45, 416-BPX-16-45, 416-BPX-20-45

Product Variations

Part Number	Hose I.D. (in.)	Thread	Fitting Length	C.O. Cutoff	Drop	Nut Hex
204-BPX-4-45	1/4	1/4-19	2.645	1.69	0.500	11/16
204-BPX-6-45	1/4	3/8-19	2.965	2.01	0.625	7/8
206-BPX-6-45	3/8	3/8-19	2.920	2.92	0.627	7/8
206-BPX-8-45	3/8	1/2-14	3.155	2.2	0.944	1
208-BPX-8-45	1/2	1/2-14	3.217	2.2	0.750	1
208-BPX-10-45	1/2	5/8-14	3.467	2.45	1.125	1-1/16
210-BPX-10-45	5/8	5/8-14	3.475	2.165	0.875	1-1/16
210-BPX-12-45	5/8	3/4-14	3.955	2.75	1.125	1-1/4
212-BPX-12-45	3/4	3/4-14	4.150	2.9	1.125	1-1/4
412-BPX-12-45	3/4	3/4-14	4.755	2.9	1.125	1-1/4
212-BPX-16-45	3/4	1-11	4.534	3.284	1.250	1-1/2
412-BPX-16-45	3/4	1 - 11	5.139	3.284	1.427	1-1/2
216-BPX-16-45	1	1-11	4.780	3.31	1.250	1-1/2
416-BPX-16-45	1	1 - 11	5.360	3.31	1.250	1-1/2
216-BPX-20-45	1	1-1/4-11	5.170	3.7	1.500	1-7/8
416-BPX-20-45	1	1-1/4 - 11	5.750	3.7	1.500	1-7/8
220-BPX-20-45	1-1/4	1-1/4 - 11	5.456	3.533	1.500	1-7/8
204-1JBPX-4-45	-	-	-	-	-	-
204-1JBPX-4-45	1/4	1/4-19	2.645	1.69	0.500	11/16
204-1JBPX-6-45	1/4	3/8-19	2.965	2.01	0.625	7/8
206-1JBPX-6-45	3/8	3/8-19	2.965	2.01	0.625	7/8
206-1JBPX-8-45	3/8	1/2-14	3.155	2.2	0.944	1
208-1JBPX-8-45	1/2	1/2-14	3.217	2.2	0.750	1
208-1JBPX-10-45	1/2	5/8-14	3.467	2.45	1.125	1-1/16
210-1JBPX-10-45	5/8	5/8-14	3.825	2.62	0.875	1-1/16
210-1JBPX-12-45	5/8	3/4-14	3.955	2.75	1.125	1-1/4
212-1JBPX-12-45	3/4	3/4-14	4.755	2.9	1.125	1-1/4
212-1JBPX-16-45	3/4	1 - 14	5.139	3.284	1.427	1-1/2
216-1JBPX-16-45	1	1 - 11	5.36	3.31	1.250	1-1/2
216-1JBPX-20-45	1	1-1/4 - 11	5.75	3.7	1.500	1-7/8
220-1JBPX-20-45	1-1/4	1-1/4 - 11	5.456	3.533	1.500	1-7/8
204-1PBPX-4-45	-	-	-	-	-	-
204-1PBPX-4-45	1/4	1/4-19	2.645	1.69	0.500	11/16
204-1PBPX-6-45	1/4	3/8-19	2.965	2.01	0.625	7/8
206-1PBPX-6-45	3/8	3/8-19	3	2.01	0.625	7/8
206-1PBPX-8-45	3/8	1/2-14	3.155	2.2	0.944	1
208-1PBPX-8-45	1/2	1/2-14	3.217	2.2	0.750	1
208-1PBPX-10-45	1/2	5/8-14	3.467	2.45	1.125	1-1/16
412-1PBPX-12-45	3/4	3/4-14	4.755	2.9	1.125	1-1/4
412-1PBPX-16-45	3/4	1 - 14	5.139	3.284	1.427	1-1/2
416-1PBPX-16-45	1	1 - 11	5.36	3.31	1.250	1-1/2
416-1PBPX-20-45	1	1-1/4 - 11	5.75	3.7	1.500	1-7/8
