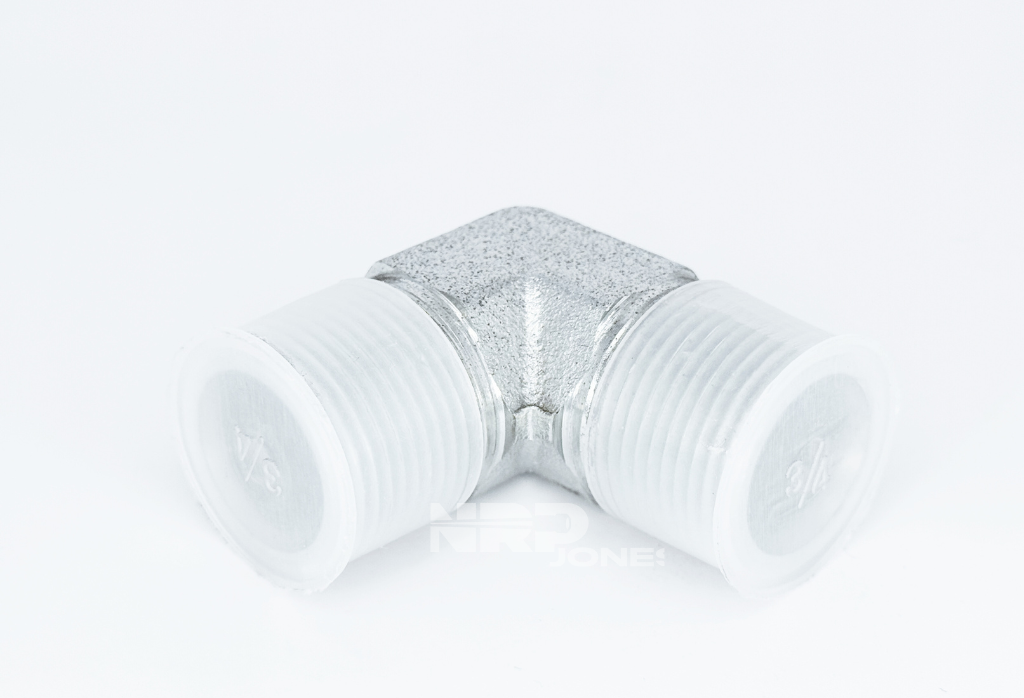

500 Braze 90° Tube Elbow

Name: 500 Braze 90° Tube Elbow
SKU: f8b17245d2e8

$2.00

Part Number

Clear

Additional information

Part Number	500-10, 500-12, 500-14, 500-16, 500-20, 500-24, 500-32, 500-4, 500-5, 500-6, 500-8

Part Number	Thread	Tube O.D.	A	B	C	D	E	JIC Male
500-4	7/16-20	1/4	1-9/64	57/64	1/2	.125	.254	7/16-20
500-5	1/2-20	5/16	-	-	-	-	-	1/2-20
500-6	9/16-18	3/8	1-3/8	1-1/16	5/8	.140	.379	9/16-18
500-8	3/4-16	1/2	1-21/32	1-1/4	13/16	.188	.504	3/4-16
500-10	7/8-14	5/8	1-15/16	1-29/64	15/16	.218	.631	7/8-14
500-12	1-1/16-12	3/4	2-7/32	1-21/32	1-1/8	.232	.756	1-1/16-12
500-14	1-3/16-12	7/8	-	-	-	-	-	1-3/16-12
500-16	1-5/16-12	1	2-1/2	1-13/16	1-3/8	.250	1.006	1-5/16-12
500-20	1-5/8-12	1-1/4	2-15/16	2-1/16	1-3/4	.312	1.256	1-5/8-12
500-24	1-7/8-12	1-1/2	3-5/16	2-21/64	2	.343	1.506	1-7/8-12
500-32	2-1/2-12	2	4-5/16	3-1/16	2-1/2	.343	2.006	2-1/2-12
