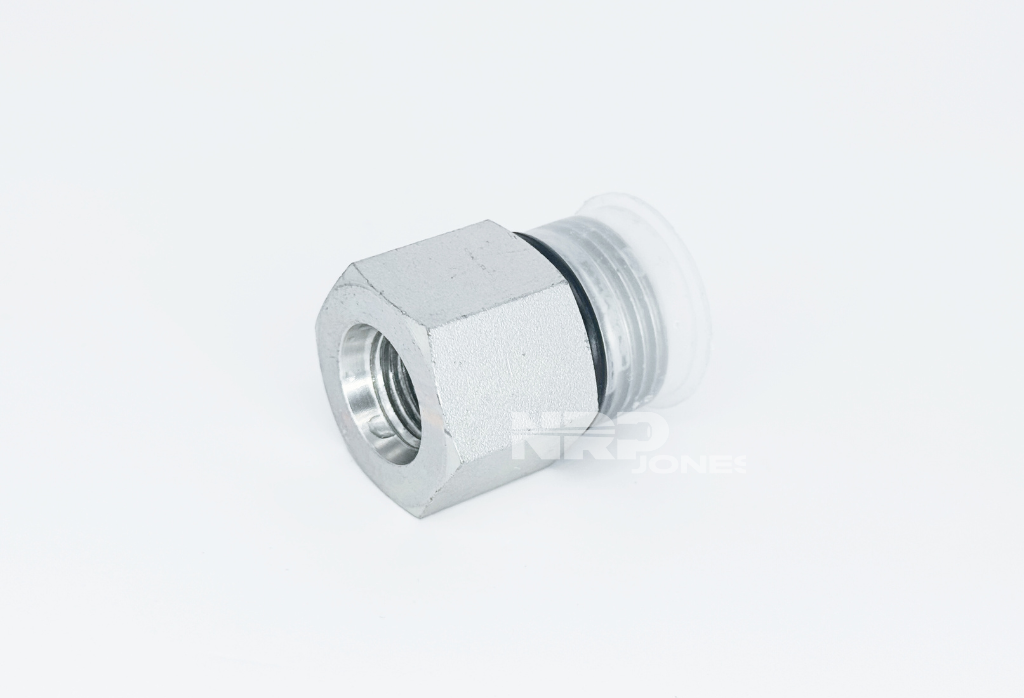

6410 ORB Port Bushing

Name: 6410 ORB Port Bushing
SKU: a730c3b991d5

$2.00

Part Number

Clear

Additional information

Part Number	6410-10-12, 6410-10-6, 6410-10-8, 6410-12-10, 6410-12-16, 6410-12-4, 6410-12-8, 6410-14-12, 6410-16-10, 6410-16-12, 6410-16-14, 6410-16-20, 6410-16-8, 6410-20-12, 6410-20-16, 6410-20-24, 6410-24-12, 6410-24-16, 6410-24-20, 6410-32-24, 6410-4-6, 6410-6-2, 6410-6-4, 6410-6-8, 6410-8-10, 6410-8-12, 6410-8-14, 6410-8-16, 6410-8-20, 6410-8-4, 6410-8-5, 6410-8-6

Part Number	Hex	Tube O.D.	A	ORB Male	ORB Female
6410-4-6	-	1/4	-	7/16-20	9/16-18
6410-6-2	-	3/8	-	9/16-18	3/8-24
6410-6-4	11/16	3/8	31/32	9/16-18	7/16-20
6410-6-8	-	3/8	-	9/16-18	3/4-16
6410-8-4	-	1/2	-	3/4-16	7/16-20
6410-8-5	-	1/2	-	3/4-16	1/2-20
6410-8-6	7/8	1/2	1-1/16	3/4-16	9/16-18
6410-8-10	-	1/2	-	3/4-16	7/8-14
6410-8-12	-	1/2	-	3/4-16	1-1/16-12
6410-8-14	-	1/2	-	3/4-16	1-3/16-12
6410-8-16	-	1/2	-	3/4-16	1-5/16-12
6410-8-20	-	1/2	-	3/4-16	1-5/8-12
6410-10-6	-	5/8	-	7/8-14	9/16-18
6410-10-8	1	5/8	1-1/4	7/8-14	3/4-16
6410-10-12	-	5/8	-	7/8-14	1-1/16-12
6410-12-4	-	3/4	-	1-1/16-12	7/16-20
6410-12-8	-	3/4	-	1-1/16-12	3/4-16
6410-12-10	1-1/4	3/4	1-7/16	1-1/16-12	7/8-14
6410-12-16	-	3/4	-	1-1/16-12	1-5/16-12
6410-14-12	1-3/8	7/8	1-19/32	1-3/16-12	1-1/16-12
6410-16-8	-	1	-	1-5/16-12	3/4-16
6410-16-10	-	1	-	1-5/16-12	7/8-14
6410-16-12	-	1	-	1-5/16-12	1-1/16-12
6410-16-14	1-1/2	1	1-19/32	1-5/16-12	1-3/16-12
6410-16-20	-	1	-	1-5/16-12	1-5/8-12
6410-20-12	-	1-1/4	-	1-5/8-12	1-1/16-12
6410-20-16	1-7/8	1-1/4	1	1-5/8-12	1-5/16-12
6410-20-24	-	1-1/4	-	1-5/8-12	1-7/8-12
6410-24-12	-	1-1/2	-	1-7/8-12	1-1/16-12
6410-24-16	-	1-1/2	-	1-7/8-12	1-5/16-12
6410-24-20	2-1/8	1-1/2	1-19/32	1-7/8-12	1-5/8-12
6410-32-24	2-3/4	2	1	2-1/2-12	1-7/8-12
