Part Number |
Hose I.D. (in.) | Hose O.D. (in.) | Rated W.P. (psi) | Min. Burst (psi) | Min. Bend Radius (in.) | Wt. Per Ft. (lbs) | Tube | Reinforcement | Cover | Temperature | Constant Temp. Max | Instant Temp. Max | Din Tube O.D. (MM) | D1(2) | D1(3) | D17 | I2 | I4 | L16 | L16(2) | L17 | S2 | S4 |

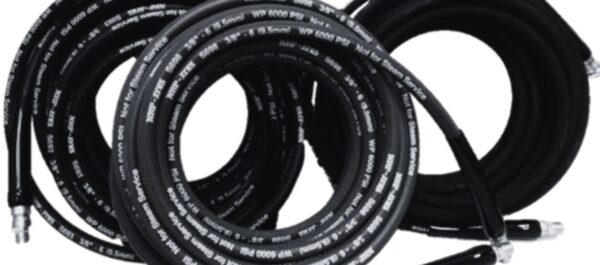

S493-0609 |
3/8 | 0.61 | 4000 | 12000 | 2.55 | 0.17 | Nitrile, resistant against cold and hot water with usual cleaning agents | One wire braid of high tensile steel | Black, abrasion and ozone resistant SBR blend | 14°F to 311°F intermittent | 250°F | 311°F | 14 | 0.380 | 0.380 | 1.130 | 1.370 | 0.060 | 1.140 | 2.180 | 1.140 | 0.750 | 1.000 |
S498-0609 |
3/8 | 0.61 | 4000 | 12000 | 2.55 | 0.17 | Nitrile, resistant against cold and hot water with usual cleaning agents | One wire braid of high tensile steel | Blue, abrasion and ozone resistant SBR blend | 14°F to 311°F intermittent | 250°F | 311°F | 14 | 0.480 | 0.480 | 1.310 | 1.540 | 0.060 | 1.360 | 2.480 | 1.360 | 1.060 | 1.190 |
S693-0609 |
3/8 | 0.673 | 6000 | 18000 | 2.55 | 0.27 | Nitrile, resistant against cold and hot water with usual cleaning agents | Two wire braid of high tensile steel | Black, abrasion and ozone resistant SBR blend | 14°F to 311°F intermittent | 250°F | 311°F | 16 | 0.610 | 0.610 | 1.500 | 1.590 | 0.060 | 1.520 | 2.650 | 1.520 | 1.190 | 1.370 |
S689-0609 |
3/8 | 0.673 | 6000 | 18000 | 2.55 | 0.27 | Nitrile, resistant against cold and hot water with usual cleaning agents | Two wire braid of high tensile steel | Black, abrasion and ozone resistant SBR blend | 14°F to 311°F intermittent | 250°F | 311°F | 20 | 0.810 | 0.810 | 1.750 | 1.610 | 0.060 | 1.670 | 2.800 | 1.670 | 1.440 | 1.620 |
