Product Variations
Part Number | Hose I.D. (in.) | Hose O.D. (in.) | Rated W.P. (psi) | Min. Burst (psi) | Min. Bend Radius (in.) | Wt. Per Ft. (lbs) | Recommended for | Tube | Reinforcement | Cover | Temperature | Din Tube O.D. (MM) | D1(2) | D2 | L7 | L7(2) | N | S2 | NPTF |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

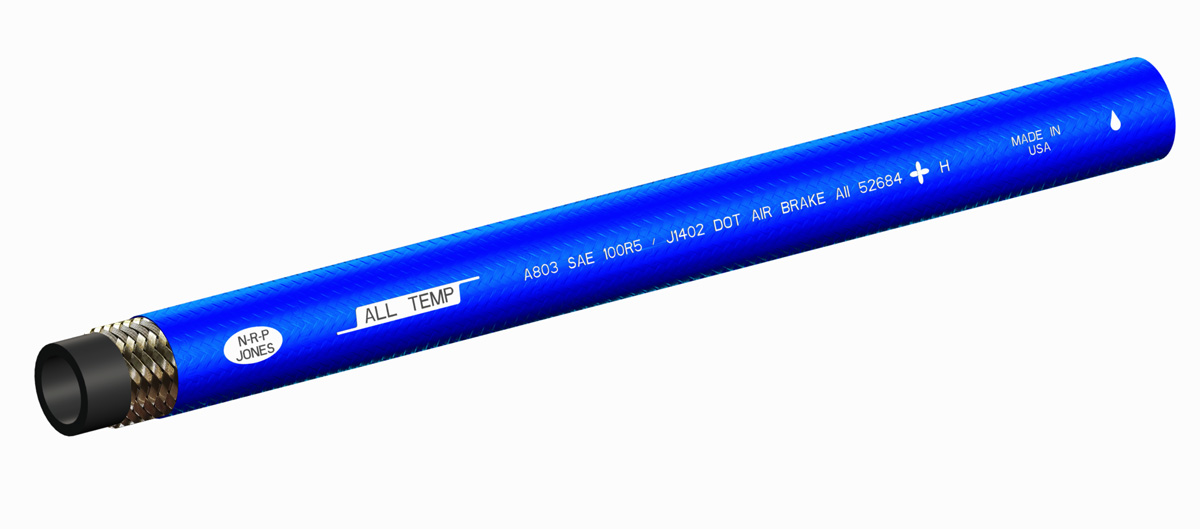

A803-04 | 3/16 | 0.52 | 3000 | 12000 | 3 | 0.16 | High temperature, medium pressure hydraulic applications using petroleum base hydraulic fluids. Also for gasoline, diesel fuel, oil, water, and air. Meets SAE 100R5 and SAE j1402 type A11 for hydraulic service in all sizes. Meets the requirements of DOT FMVSS 106 type A11 for truck air brake specifications in sizes 3/16" thru 5/8". Also approved by AAMVA for air brake service. | Black, oil resistant, high temperature Nitrile (NBR) | One high tensile steel wire braid over one polyester braid. Friction layers under and over wire braid to improve tube and cover adhesion. | Blue, oil resistant polyester braid impregnated with Neoprene (CR). | -40°F to +300°F | 10 | 1.020 | - | 1.760 | 1.760 | - | 1.630 | - |
A803-05 | 1/4 | 0.58 | 3000 | 12000 | 3.38 | 0.18 | High temperature, medium pressure hydraulic applications using petroleum base hydraulic fluids. Also for gasoline, diesel fuel, oil, water, and air. Meets SAE 100R5 and SAE j1402 type A11 for hydraulic service in all sizes. Meets the requirements of DOT FMVSS 106 type A11 for truck air brake specifications in sizes 3/16" thru 5/8". Also approved by AAMVA for air brake service. | Black, oil resistant, high temperature Nitrile (NBR) | One high tensile steel wire braid over one polyester braid. Friction layers under and over wire braid to improve tube and cover adhesion. | Blue, oil resistant polyester braid impregnated with Neoprene (CR). | -40°F to +300°F | 8 | 1.260 | - | 1.920 | 1.920 | - | 1.880 | - |
A803-06 | 5/16 | 0.67 | 2250 | 9000 | 4 | 0.23 | High temperature, medium pressure hydraulic applications using petroleum base hydraulic fluids. Also for gasoline, diesel fuel, oil, water, and air. Meets SAE 100R5 and SAE j1402 type A11 for hydraulic service in all sizes. Meets the requirements of DOT FMVSS 106 type A11 for truck air brake specifications in sizes 3/16" thru 5/8". Also approved by AAMVA for air brake service. | Black, oil resistant, high temperature Nitrile (NBR) | One high tensile steel wire braid over one polyester braid. Friction layers under and over wire braid to improve tube and cover adhesion. | Blue, oil resistant polyester braid impregnated with Neoprene (CR). | -40°F to +300°F | 10 | - | - | - | - | - | - | - |
A803-08 | 13/32 | 0.77 | 2000 | 8000 | 4.62 | 0.27 | High temperature, medium pressure hydraulic applications using petroleum base hydraulic fluids. Also for gasoline, diesel fuel, oil, water, and air. Meets SAE 100R5 and SAE j1402 type A11 for hydraulic service in all sizes. Meets the requirements of DOT FMVSS 106 type A11 for truck air brake specifications in sizes 3/16" thru 5/8". Also approved by AAMVA for air brake service. | Black, oil resistant, high temperature Nitrile (NBR) | One high tensile steel wire braid over one polyester braid. Friction layers under and over wire braid to improve tube and cover adhesion. | Blue, oil resistant polyester braid impregnated with Neoprene (CR). | -40°F to +300°F | 10 | - | 0.190 | 0.850 | - | 0.800 | 0.550 | 1/8-27 |
A803-10 | 1/2 | 0.92 | 1750 | 7000 | 5.5 | 0.36 | High temperature, medium pressure hydraulic applications using petroleum base hydraulic fluids. Also for gasoline, diesel fuel, oil, water, and air. Meets SAE 100R5 and SAE j1402 type A11 for hydraulic service in all sizes. Meets the requirements of DOT FMVSS 106 type A11 for truck air brake specifications in sizes 3/16" thru 5/8". Also approved by AAMVA for air brake service. | Black, oil resistant, high temperature Nitrile (NBR) | One high tensile steel wire braid over one polyester braid. Friction layers under and over wire braid to improve tube and cover adhesion. | Blue, oil resistant polyester braid impregnated with Neoprene (CR). | -40°F to +300°F | 12 | - | 0.280 | 0.850 | - | 1.120 | 0.560 | 1/4-18 |
A803-12 | 5/8 | 1.08 | 1500 | 6000 | 6.5 | 0.44 | High temperature, medium pressure hydraulic applications using petroleum base hydraulic fluids. Also for gasoline, diesel fuel, oil, water, and air. Meets SAE 100R5 and SAE j1402 type A11 for hydraulic service in all sizes. Meets the requirements of DOT FMVSS 106 type A11 for truck air brake specifications in sizes 3/16" thru 5/8". Also approved by AAMVA for air brake service. | Black, oil resistant, high temperature Nitrile (NBR) | One high tensile steel wire braid over one polyester braid. Friction layers under and over wire braid to improve tube and cover adhesion. | Blue, oil resistant polyester braid impregnated with Neoprene (CR). | -40°F to +300°F | 14 | - | 0.410 | 0.850 | - | 1.220 | 0.750 | 3/8-18 |
1803-16 | 7/8 | 1.23 | 800 | 3200 | 7.38 | 0.45 | High temperature, medium pressure hydraulic applications using petroleum base hydraulic fluids. Also for gasoline, diesel fuel, oil, water, and air. Meets SAE 100R5 and SAE j1402 type A11 for hydraulic service in all sizes. Meets the requirements of DOT FMVSS 106 type A11 for truck air brake specifications in sizes 3/16" thru 5/8". Also approved by AAMVA for air brake service. | Black, oil resistant, high temperature Nitrile (NBR) | One high tensile steel wire braid over one polyester braid. Friction layers under and over wire braid to improve tube and cover adhesion. | Blue, oil resistant polyester braid impregnated with Neoprene (CR). | -40°F to +300°F | 15 | - | 0.280 | 0.980 | - | 1.090 | 0.750 | 1/4-18 |
1803-20 | 1-1/8 | 1.5 | 625 | 2500 | 9 | 0.56 | High temperature, medium pressure hydraulic applications using petroleum base hydraulic fluids. Also for gasoline, diesel fuel, oil, water, and air. Meets SAE 100R5 and SAE j1402 type A11 for hydraulic service in all sizes. Meets the requirements of DOT FMVSS 106 type A11 for truck air brake specifications in sizes 3/16" thru 5/8". Also approved by AAMVA for air brake service. | Black, oil resistant, high temperature Nitrile (NBR) | One high tensile steel wire braid over one polyester braid. Friction layers under and over wire braid to improve tube and cover adhesion. | Blue, oil resistant polyester braid impregnated with Neoprene (CR). | -40°F to +300°F | 16 | - | 0.410 | 1.040 | - | 1.220 | 0.750 | 3/8-18 |
1803-24 | 1-3/8 | 1.75 | 500 | 2000 | 10.5 | 0.64 | High temperature, medium pressure hydraulic applications using petroleum base hydraulic fluids. Also for gasoline, diesel fuel, oil, water, and air. Meets SAE 100R5 and SAE j1402 type A11 for hydraulic service in all sizes. Meets the requirements of DOT FMVSS 106 type A11 for truck air brake specifications in sizes 3/16" thru 5/8". Also approved by AAMVA for air brake service. | Black, oil resistant, high temperature Nitrile (NBR) | One high tensile steel wire braid over one polyester braid. Friction layers under and over wire braid to improve tube and cover adhesion. | Blue, oil resistant polyester braid impregnated with Neoprene (CR). | -40°F to +300°F | 18 | - | 0.530 | 1.150 | - | 1.470 | 0.880 | 1/2-14 |
1803-32 | 1-13/16 | 2.22 | 350 | 1400 | 13.25 | 0.9 | High temperature, medium pressure hydraulic applications using petroleum base hydraulic fluids. Also for gasoline, diesel fuel, oil, water, and air. Meets SAE 100R5 and SAE j1402 type A11 for hydraulic service in all sizes. Meets the requirements of DOT FMVSS 106 type A11 for truck air brake specifications in sizes 3/16" thru 5/8". Also approved by AAMVA for air brake service. | Black, oil resistant, high temperature Nitrile (NBR) | One high tensile steel wire braid over one polyester braid. Friction layers under and over wire braid to improve tube and cover adhesion. | Blue, oil resistant polyester braid impregnated with Neoprene (CR). | -40°F to +300°F | 18 | - | 0.410 | 1.100 | - | 1.220 | 0.750 | 3/8-18 |
1803-40 | 2-3/8 | 2.87 | 350 | 1400 | 24 | 1.36 | High temperature, medium pressure hydraulic applications using petroleum base hydraulic fluids. Also for gasoline, diesel fuel, oil, water, and air. Meets SAE 100R5 and SAE j1402 type A11 for hydraulic service in all sizes. Meets the requirements of DOT FMVSS 106 type A11 for truck air brake specifications in sizes 3/16" thru 5/8". Also approved by AAMVA for air brake service. | Black, oil resistant, high temperature Nitrile (NBR) | One high tensile steel wire braid over one polyester braid. Friction layers under and over wire braid to improve tube and cover adhesion. | Blue, oil resistant polyester braid impregnated with Neoprene (CR). | -40°F to +300°F | 20 | - | 0.530 | 1.100 | - | 1.470 | 0.940 | 1/2-14 |
