Part Number |
Hose I.D. (in.) | Hose O.D. (in.) | Rated W.P. (psi) | Min. Burst (psi) | Min. Bend Radius (in.) | Wt. Per Ft. (lbs) | Recommended for | Tube | Reinforcement | Cover | Temperature | Din Tube O.D. (MM) | D2 | L7 | N | S2 | NPTF |

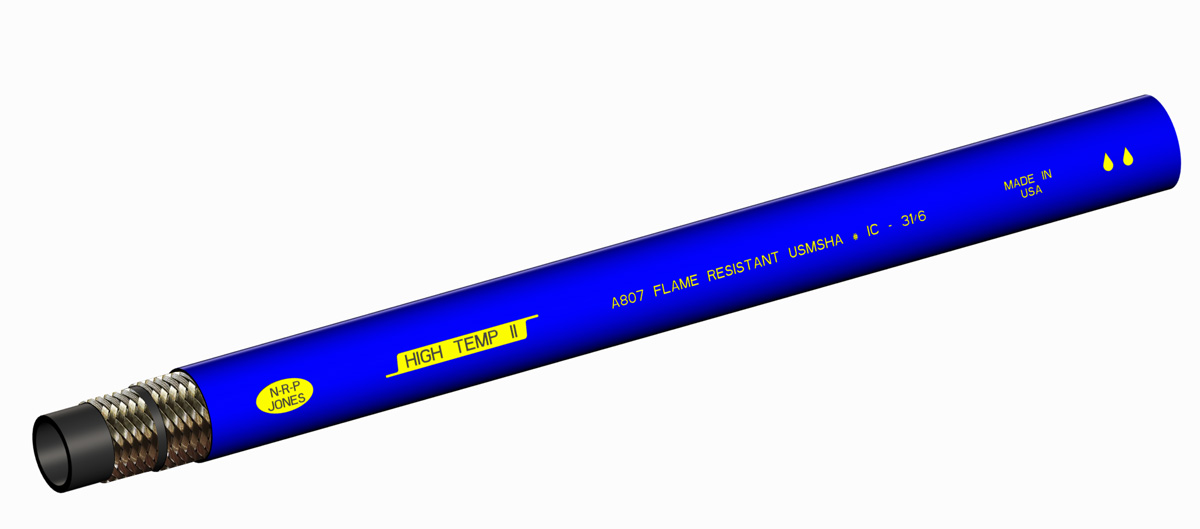

A807-04 |
1/4 | 0.59 | 5000 | 20000 | 4 | 0.25 | High temperature, medium pressure hydraulic applications using petroleum base hydraulic fluids. Also for gasoline, diesel fuel, oil, water, and air. Dimensions and working pressures are the same as SAE 100R2AT. | Black, oil resistant, synthetic Nitrile (NBR) | Two high tensile steel wire braids | Blue, oil and abrasion resistant, Neoprene (CR). | -40°F to +300°F | 20 | 0.720 | 1.590 | 1.410 | 1.060 | 3/4-14 |
A807-06 |
3/8 | 0.75 | 4000 | 16000 | 5 | 0.32 | High temperature, medium pressure hydraulic applications using petroleum base hydraulic fluids. Also for gasoline, diesel fuel, oil, water, and air. Dimensions and working pressures are the same as SAE 100R2AT. | Black, oil resistant, synthetic Nitrile (NBR) | Two high tensile steel wire braids | Blue, oil and abrasion resistant, Neoprene (CR). | -40°F to +300°F | 22 | 0.530 | 1.590 | 1.470 | 1.190 | 1/2-14 |
A807-08 |
1/2 | 0.86 | 3500 | 14000 | 7 | 0.4 | High temperature, medium pressure hydraulic applications using petroleum base hydraulic fluids. Also for gasoline, diesel fuel, oil, water, and air. Dimensions and working pressures are the same as SAE 100R2AT. | Black, oil resistant, synthetic Nitrile (NBR) | Two high tensile steel wire braids | Blue, oil and abrasion resistant, Neoprene (CR). | -40°F to +300°F | 22 | 0.720 | 1.470 | 1.590 | 1.180 | 3/4-14 |
A807-12 |
3/4 | 1.16 | 2250 | 9000 | 9.5 | 0.57 | High temperature, medium pressure hydraulic applications using petroleum base hydraulic fluids. Also for gasoline, diesel fuel, oil, water, and air. Dimensions and working pressures are the same as SAE 100R2AT. | Black, oil resistant, synthetic Nitrile (NBR) | Two high tensile steel wire braids | Blue, oil and abrasion resistant, Neoprene (CR). | -40°F to +300°F | 25 | 0.940 | 1.620 | 2.010 | 1.440 | 1 - 11-1/2 |
A807-16 |
1 | 1.49 | 2000 | 8000 | 12 | 0.9 | High temperature, medium pressure hydraulic applications using petroleum base hydraulic fluids. Also for gasoline, diesel fuel, oil, water, and air. Dimensions and working pressures are the same as SAE 100R2AT. | Black, oil resistant, synthetic Nitrile (NBR) | Two high tensile steel wire braids | Blue, oil and abrasion resistant, Neoprene (CR). | -40°F to +300°F | 25 | 0.720 | 1.640 | 1.780 | 1.440 | 3/4-14 |
1807-20 |
1-1/4 | 1.9 | 1625 | 6500 | 16.5 | 1.47 | High temperature, medium pressure hydraulic applications using petroleum base hydraulic fluids. Also for gasoline, diesel fuel, oil, water, and air. Dimensions and working pressures are the same as SAE 100R2AT. | Black, oil resistant, synthetic Nitrile (NBR) | Two high tensile steel wire braids | Blue, oil and abrasion resistant, Neoprene (CR). | -40°F to +300°F | 25 | 0.940 | 1.640 | 2.010 | 1.440 | 1 - 11-1/2 |
1807-24 |
1-1/2 | 2.15 | 1250 | 5000 | 25 | 1.7 | High temperature, medium pressure hydraulic applications using petroleum base hydraulic fluids. Also for gasoline, diesel fuel, oil, water, and air. Dimensions and working pressures are the same as SAE 100R2AT. | Black, oil resistant, synthetic Nitrile (NBR) | Two high tensile steel wire braids | Blue, oil and abrasion resistant, Neoprene (CR). | -40°F to +300°F | 25 | 1.250 | 1.760 | 2.380 | 1.630 | 1-1/4 - 11-1/2 |
1807-32 |
2 | 2.66 | 1125 | 4500 | 25 | 2.34 | High temperature, medium pressure hydraulic applications using petroleum base hydraulic fluids. Also for gasoline, diesel fuel, oil, water, and air. Dimensions and working pressures are the same as SAE 100R2AT. | Black, oil resistant, synthetic Nitrile (NBR) | Two high tensile steel wire braids | Blue, oil and abrasion resistant, Neoprene (CR). | -40°F to +300°F | 28 | 0.940 | 1.760 | 2.010 | 1.630 | 1 - 11-1/2 |
