| Part Number |
Lengths | Spring I.D. (in.) | Description | D1(2) | D19 | L7 | L42 | L43 | L44 | L52 | S | S1 | S2 |
| 2-RSG |

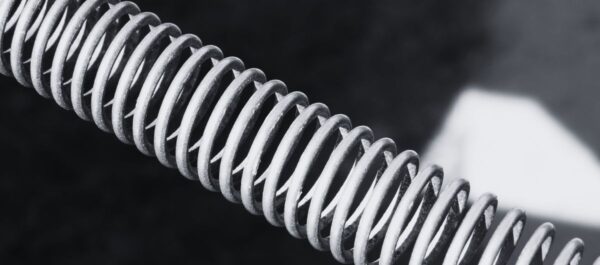

20' to 100' | 0.55 | Rust resistant, zinc plated open wound spring guards prolong the life of the hose cover and reinforcement from abrasion, kinking and other damage incurred in severe working areas. Open wound spring guards are available for all types and sizes of hose. | 1.020 | 1.020 | 1.760 | - | - | - | 2.290 | 1.880 | - | 1.610 |
| 3-RSG |
20' to 100' | 0.65 | Rust resistant, zinc plated open wound spring guards prolong the life of the hose cover and reinforcement from abrasion, kinking and other damage incurred in severe working areas. Open wound spring guards are available for all types and sizes of hose. | 1.260 | 1.260 | 1.920 | - | - | - | 2.410 | 2.250 | - | 1.970 |
| 4-RSG |
20' to 100' | 0.75 | Rust resistant, zinc plated open wound spring guards prolong the life of the hose cover and reinforcement from abrasion, kinking and other damage incurred in severe working areas. Open wound spring guards are available for all types and sizes of hose. | - | - | - | - | - | - | - | - | - | - |
| 5-RSG |
20' to 100' | 0.835 | Rust resistant, zinc plated open wound spring guards prolong the life of the hose cover and reinforcement from abrasion, kinking and other damage incurred in severe working areas. Open wound spring guards are available for all types and sizes of hose. | 0.170 | 0.170 | 0.630 | - | - | - | 0.990 | 0.690 | - | 0.550 |
| 6-RSG |
20' to 100' | 0.9 | Rust resistant, zinc plated open wound spring guards prolong the life of the hose cover and reinforcement from abrasion, kinking and other damage incurred in severe working areas. Open wound spring guards are available for all types and sizes of hose. | 0.260 | 0.260 | 0.740 | - | - | - | 1.120 | 0.810 | - | 0.750 |
| 7-RSG |
20' to 100' | 0.99 | Rust resistant, zinc plated open wound spring guards prolong the life of the hose cover and reinforcement from abrasion, kinking and other damage incurred in severe working areas. Open wound spring guards are available for all types and sizes of hose. | 0.380 | 0.360 | 0.800 | - | - | - | 1.490 | 0.940 | - | 0.750 |
| 8-RSG |
20' to 100' | 1.18 | Rust resistant, zinc plated open wound spring guards prolong the life of the hose cover and reinforcement from abrasion, kinking and other damage incurred in severe working areas. Open wound spring guards are available for all types and sizes of hose. | 0.480 | 0.450 | 0.920 | - | - | - | 1.530 | 1.130 | - | 1.060 |
| 11-RSG |
20' to 100' | 1.18 | Rust resistant, zinc plated open wound spring guards prolong the life of the hose cover and reinforcement from abrasion, kinking and other damage incurred in severe working areas. Open wound spring guards are available for all types and sizes of hose. | 0.610 | 0.550 | 1.020 | - | - | - | 1.730 | 1.380 | - | 1.180 |
| 12-RSG |
20' to 100' | 1.34 | Rust resistant, zinc plated open wound spring guards prolong the life of the hose cover and reinforcement from abrasion, kinking and other damage incurred in severe working areas. Open wound spring guards are available for all types and sizes of hose. | 0.810 | 0.780 | 1.180 | - | - | - | 1.870 | 1.630 | - | 1.420 |
| 16-RSG |
20' to 60' | 1.63 | Rust resistant, zinc plated open wound spring guards prolong the life of the hose cover and reinforcement from abrasion, kinking and other damage incurred in severe working areas. Open wound spring guards are available for all types and sizes of hose. | 1.020 | 1.020 | 1.260 | - | - | - | 1.980 | 1.880 | - | 1.610 |
| 20-RSG |
10' to 40' | 2.125 | Rust resistant, zinc plated open wound spring guards prolong the life of the hose cover and reinforcement from abrasion, kinking and other damage incurred in severe working areas. Open wound spring guards are available for all types and sizes of hose. | - | - | - | - | - | - | - | - | - | - |
| 24-RSG |
10' to 40' | 2.3 | Rust resistant, zinc plated open wound spring guards prolong the life of the hose cover and reinforcement from abrasion, kinking and other damage incurred in severe working areas. Open wound spring guards are available for all types and sizes of hose. | - | 0.550 | - | 1.030 | 1.700 | 2.240 | - | 0.940 | 1.130 | - |
