Part Number |
Hose I.D. (in.) | Hose O.D. (in.) | Rated W.P. (psi) | Min. Burst (psi) | Min. Bend Radius (in.) | Wt. Per Ft. (lbs) | Recommended for | Tube | Reinforcement | WearGuard | Temperature | Din Tube O.D. (MM) | D2 | L7 | N | S2 | NPTF |

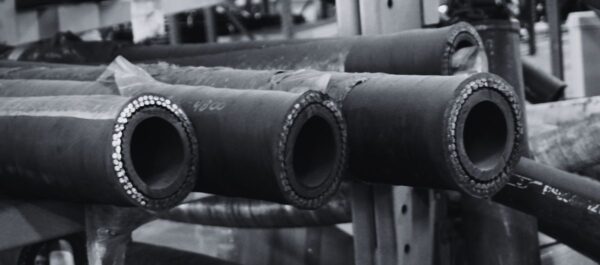

XF2SNK-04UHMW |
1/4 | 0.535 | 6550 | 28275 | 1.77 | 0.28 | Applications which meet or exceed DIN 2SNK, Medium pressure hydraulic oil lines | Black, oil resistant, Nitrile (NBR). | Two braids of high tensile steel wire | Wearguard cover black, oil & abrasion resistant neoprene (CR), MSHA approved with UHMW | -40°F to 250°F | 30 | 1.500 | 1.920 | 2.430 | 1.880 | 1-1/2 - 11-1/2 |
XF2SNK-06UHMW |
3/8 | 0.693 | 5600 | 23925 | 2.76 | 0.43 | Applications which meet or exceed DIN 2SNK, Medium pressure hydraulic oil lines | Black, oil resistant, Nitrile (NBR). | Two braids of high tensile steel wire | Wearguard cover black, oil & abrasion resistant neoprene (CR), MSHA approved with UHMW | -40°F to 250°F | 30 | 1.250 | 1.920 | 2.400 | 1.880 | 1-1/4 - 11-1/2 |
XF2SNK-08UHMW |
1/2 | 0.819 | 5000 | 20300 | 3.54 | 0.55 | Applications which meet or exceed DIN 2SNK, Medium pressure hydraulic oil lines | Black, oil resistant, Nitrile (NBR). | Two braids of high tensile steel wire | Wearguard cover black, oil & abrasion resistant neoprene (CR), MSHA approved with UHMW | -40°F to 250°F | - | 1.500 | 1.920 | 2.430 | 1.880 | 1-1/2 - 11-1/2 |
