Part Number |
Hose I.D. (in.) | Hose O.D. (in.) | Rated W.P. (psi) | Min. Burst (psi) | Min. Bend Radius (in.) | Wt. Per Ft. (lbs) | Recommended for | Tube | Reinforcement | Cover | Temperature | Specification | Din Tube O.D. (MM) | Aquablast Stem | Aquablast Ferrule | D1(2) | D1(3) | D17 | I2 | I4 | L16 | L16(2) | L17 | S2 | S4 |

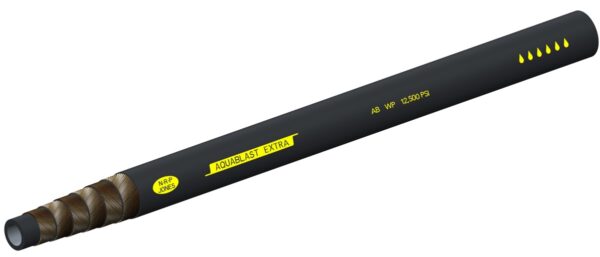

AB-06 |
3/8 | 0.83 | 12500 | 30815 | 6.1 | 0.56 | Very high constant pressure hose for water scaling systems. Suitable for passage of water and aqueous solutions. | Water resistant neoprene | 4 or 6 plies of spiral-wound high tensile steel wire with elastomer cushion between wires to eliminate wire-to-wire contact | Black, oil and abrasion resistant, neoprene | -40°F to + 176°F | Tested to EN 1829-2 | 8 | AB06-06MP | 06AB-SL | 0.610 | 0.610 | 1.500 | 1.590 | 0.060 | 1.520 | 2.650 | 1.520 | 1.190 | 1.370 |
AB-08 |
1/2 | 0.97 | 12500 | 30815 | 7.87 | 0.8 | Very high constant pressure hose for water scaling systems. Suitable for passage of water and aqueous solutions. | Water resistant neoprene | 4 or 6 plies of spiral-wound high tensile steel wire with elastomer cushion between wires to eliminate wire-to-wire contact | Black, oil and abrasion resistant, neoprene | -40°F to + 176°F | Tested to EN 1829-2 | 10 | AB08-08MP | 08AB-SL | 0.810 | 0.810 | 1.750 | 1.610 | 0.060 | 1.670 | 2.800 | 1.670 | 1.440 | 1.620 |
AB-12 |
3/4 | 1.29 | 12500 | 30815 | 9.84 | 1.36 | Very high constant pressure hose for water scaling systems. Suitable for passage of water and aqueous solutions. | Water resistant neoprene | 4 or 6 plies of spiral-wound high tensile steel wire with elastomer cushion between wires to eliminate wire-to-wire contact | Black, oil and abrasion resistant, neoprene | -40°F to + 176°F | Tested to EN 1829-2 | 10 | AB12-12MP | 12AB-SL | - | - | - | - | - | - | - | - | - | - |
AB-16 |
1 | 1.51 | 12500 | 30815 | 11.81 | 1.64 | Very high constant pressure hose for water scaling systems. Suitable for passage of water and aqueous solutions. | Water resistant neoprene | 4 or 6 plies of spiral-wound high tensile steel wire with elastomer cushion between wires to eliminate wire-to-wire contact | Black, oil and abrasion resistant, neoprene | -40°F to + 176°F | Tested to EN 1829-2 | 10 | AB16-16MP | 16AB-SL | 0.170 | 0.170 | 0.810 | 1.240 | 0.060 | 0.890 | 1.850 | 0.890 | 0.560 | 0.690 |
