| Part Number |
Hose I.D. (in.) | Hose O.D. (in.) | Rated W.P. (psi) | Min. Burst (psi) | Min. Bend Radius (in.) | Wt. Per Ft. (lbs) | Test Pressure (PSI) | Recommended for | Tube | Reinforcement | Cover | Temperature | D8 | L24 | L36 | S1 |

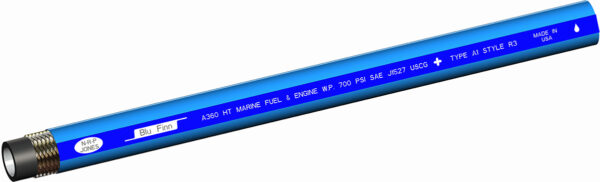

| A360-05 |
1/4 | 0.58 | 700 | 2800 | 1 | 0.2 | 1,400 | Marine Fuel & Engine Hose | Fuel/ Oil resistant, nitrile Tube | One High Tensile Steel Wire Braid | Fire / Ozone / Oil Resistant Neoprene (CR) | -4°F to +212°F | 1.600 | - | 1.320 | - |
| A360-06 |
5/16 | 0.67 | 700 | 2800 | 1.25 | 0.25 | 1,400 | Marine Fuel & Engine Hose | Fuel/ Oil resistant, nitrile Tube | One High Tensile Steel Wire Braid | Fire / Ozone / Oil Resistant Neoprene (CR) | -4°F to +212°F | 1.570 | - | 1.340 | - |
| A360-08 |
13/32 | 0.76 | 700 | 2800 | 1.75 | 0.29 | 1,400 | Marine Fuel & Engine Hose | Fuel/ Oil resistant, nitrile Tube | One High Tensile Steel Wire Braid | Fire / Ozone / Oil Resistant Neoprene (CR) | -4°F to +212°F | 1.910 | - | 1.340 | - |
| A360-10 |
1/2 | 0.92 | 700 | 2800 | 2.25 | 0.41 | 1,400 | Marine Fuel & Engine Hose | Fuel/ Oil resistant, nitrile Tube | One High Tensile Steel Wire Braid | Fire / Ozone / Oil Resistant Neoprene (CR) | -4°F to +212°F | - | - | - | - |
| A360-12 |
5/8 | 1.07 | 700 | 2800 | 2.75 | 0.49 | 1,400 | Marine Fuel & Engine Hose | Fuel/ Oil resistant, nitrile Tube | One High Tensile Steel Wire Braid | Fire / Ozone / Oil Resistant Neoprene (CR) | -4°F to +212°F | - | 0.660 | - | 0.630 |
| A360-16 |
7/8 | 1.24 | 400 | 1600 | 3.5 | 0.54 | 800 | Marine Fuel & Engine Hose | Fuel/ Oil resistant, nitrile Tube | One High Tensile Steel Wire Braid | Fire / Ozone / Oil Resistant Neoprene (CR) | -4°F to +212°F | - | 0.750 | - | 0.750 |
