Part Number |
Hose I.D. (in.) | Hose O.D. (in.) | Rated W.P. (psi) | Min. Burst (psi) | Min. Bend Radius (in.) | Wt. Per Ft. (lbs) | Recommended for | Tube | Reinforcement | Cover | Temperature | Specification | Aquablast Stem | Aquablast Ferrule | D1(2) | D1(3) | D17 | I2 | I4 | L16 | L16(2) | L17 | S2 | S4 |

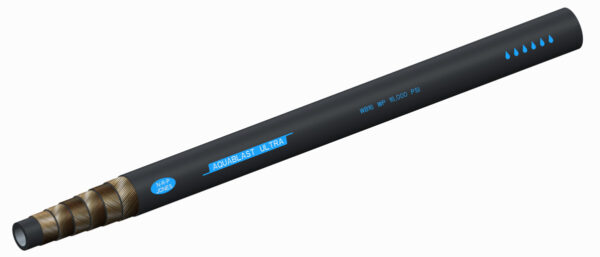

ABP-06 |
3/8 | 0.81 | 16000 | 39875 | 6.1 | 0.55 | Very high constant pressure hose for water scaling systems. Suitable for passage of water and aqueous solutions. | Water resistant neoprene | 4 or 6 plies of spiral-wound high tensile steel wire with elastomer cushion between wires to eliminate wire-to-wire contact | Black, oil and abrasion resistant, neoprene | -40°F to + 176°F | Tested to EN 1829-2 | ABP06-06MP | 06ABP-SL | - | - | - | - | - | - | - | - | - | - |
ABP-08 |
1/2 | 1.06 | 16000 | 39875 | 7.87 | 1.02 | Very high constant pressure hose for water scaling systems. Suitable for passage of water and aqueous solutions. | Water resistant neoprene | 4 or 6 plies of spiral-wound high tensile steel wire with elastomer cushion between wires to eliminate wire-to-wire contact | Black, oil and abrasion resistant, neoprene | -40°F to + 176°F | Tested to EN 1829-3 | ABP08-08MP | 08ABP-SL | 0.170 | 0.170 | 0.810 | 1.240 | 0.060 | 0.890 | 1.850 | 0.890 | 0.560 | 0.690 |
ABP-08150 |
1/2 | 1.06 | 16000 | 39875 | 7.87 | 1.02 | Very high constant pressure hose for water scaling systems. Suitable for passage of water and aqueous solutions. | Water resistant neoprene | 4 or 6 plies of spiral-wound high tensile steel wire with elastomer cushion between wires to eliminate wire-to-wire contact | Black, oil and abrasion resistant, neoprene | -40°F to + 176°F | Tested to EN 1829-4 | ABP08-08MP | 08ABP-SL | 0.260 | 0.260 | 1.000 | 1.300 | 0.060 | 1.020 | 2.050 | 1.020 | 0.750 | 0.870 |
ABP-12 |
3/4 | 1.26 | 16000 | 39875 | 12.2 | 1.39 | Very high constant pressure hose for water scaling systems. Suitable for passage of water and aqueous solutions. | Water resistant neoprene | 4 or 6 plies of spiral-wound high tensile steel wire with elastomer cushion between wires to eliminate wire-to-wire contact | Black, oil and abrasion resistant, neoprene | -40°F to + 176°F | Tested to EN 1829-5 | ABP12-12MP, ABP-12-12FBSPSS | 12ABP-SL, 12ABP-SL SS | 0.380 | 0.380 | 1.130 | 1.370 | 0.060 | 1.140 | 2.180 | 1.140 | 0.750 | 1.000 |
